Mixer for AAC Plant Cutting Machine

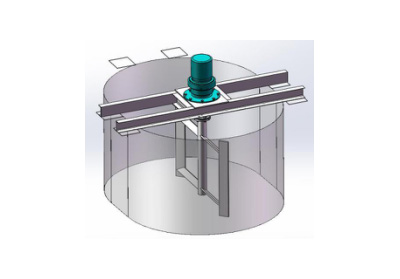

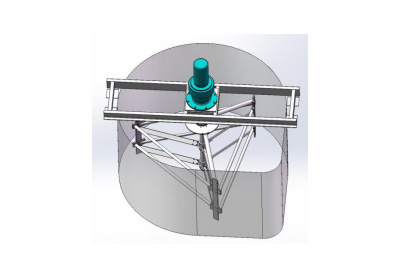

Product picture
|
|

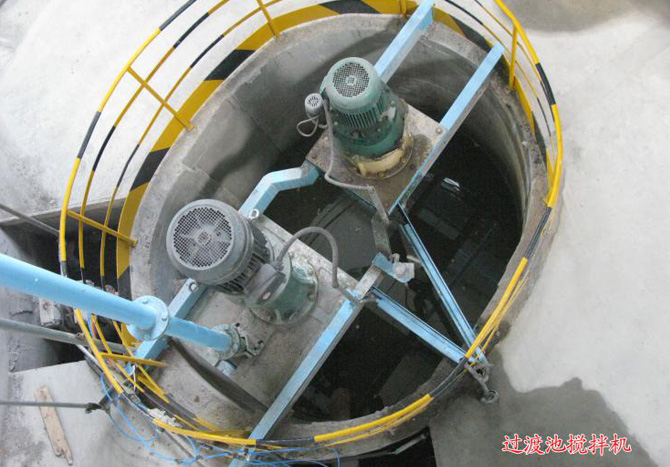

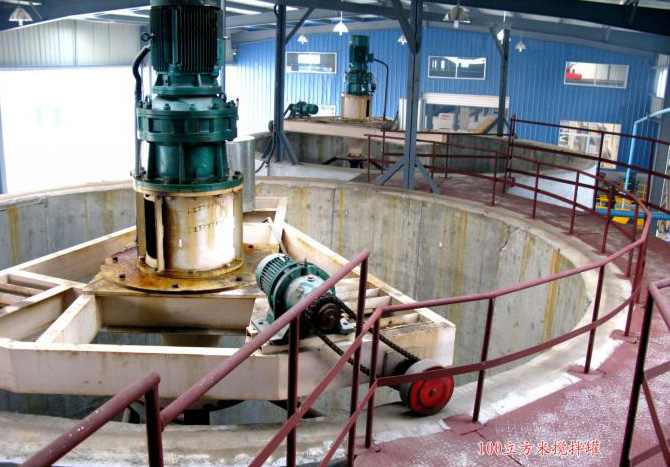

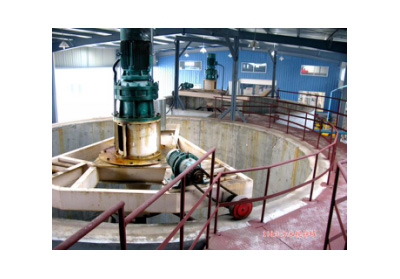

Physical map
|
|
Recommended application
In AAC block production line, mixer mainly used for slurry preparation.
Mixer types are different, useage are different.
6m3 mixer used for ferry pool, sand/flyash making slurry,waste slurry under pouring mixer.
20m3 mixer used for slurry preparation besides ball mill, waste slurry preparation besides cutting machine.
50m3 mxier 60m3 mixer 100m3 mixer used for slurry preparation.

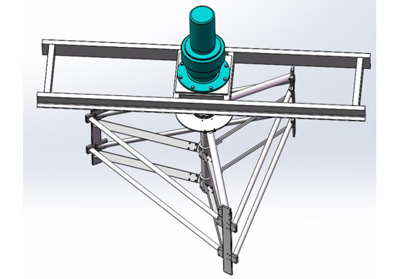

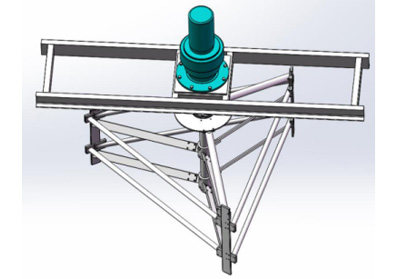

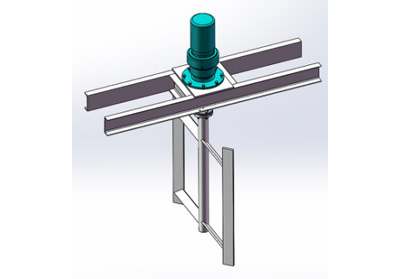

Impeller picture
|
|
6m3 impeller-cross type impeller | 20m3 50m3 60m3 100m3-Triangular impeller |
|
|

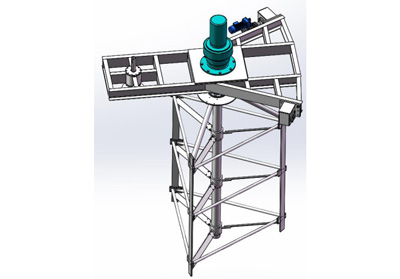

Direct connection type:Comparative economy,easy installation | Rotary type:Mixing evenly,fastly mixing speed. |
Technical Parameters
No | Name | PowerKW | Pool/tank size | |
1 | 6³Slurry mixer | 5.5 | φ2000X2000 | |
2 | 20³Slurry mixer | 11 | φ3000X3290 | |
φ3600X2000 | ||||
3 | 50³Slurry mixer | 18.5 | φ3600X5000 | |
4 | 60³Slurry mixer | 18.5 | φ4000X4000 | |
5 | 100³Slurry mixer | Rotary type | 18.5+2.2 | φ6000X4000 |
6 | Direct connection type | 22 | φ6000X4000 | |
Advangtages:
★Easy installation,screw connection
★Basically no quick-wear part
★All reducer is gear reducer.long life,not easy to break.
