Automatic AAC Block Making Machine
    • Automatic AAC Block Making Machine
Product Details

Automatic AAC Block Making Machine Recommended application

Separator used for out of autoclave section,The bricks after steaming will have certain sticky ,Use separator to separate blocks.

Automatic AAC Block Making Machine Working principle

When finished product transport to the bottom of separator to separate the finished products layer by layer from up to down (upper separating part clamp tightly up finished product block,lower layer separator clamp tightly lower finished product block,finished this,extend separator oil cylinder, to separate upper separating parts and lower layer separating parts, then separate block,and so on.

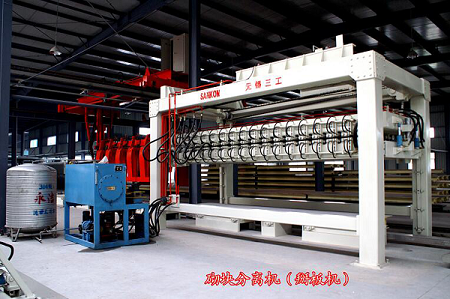

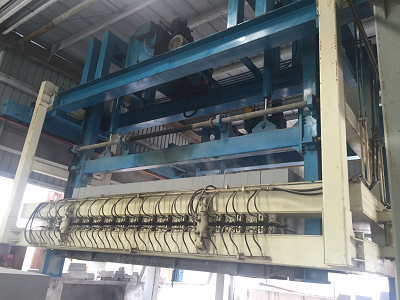

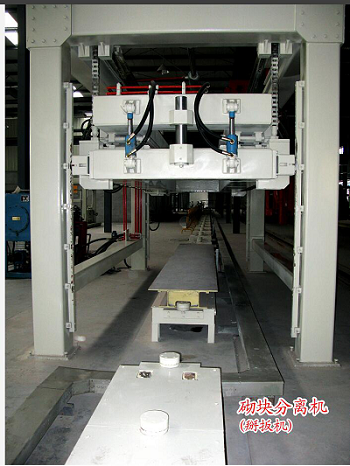

Automatic AAC Block Making Machine Separator structure:

AAC block separator is composed of cross beam、vertical beam、separating parts and lifting trolley .

1. Cross beam、vertical beam、separating parts and lifting trolley  are made of  shape steel,assembled by steel plate

2. Power provided by hydraulic station

Automatic AAC Block Making Machine Separator features:

1. AAC blocks easily stick together again after steamed,separator automatically separate it layer by layer before packing

2. Eliminate waste blocks、substandard blocks caused by stick,Promise packing running normal at the same time.

3. Separator can clamp tightly blocks equally,average error small,to make sure separating quality.

4. Separator hydraulic system design every clamper alone  control  system,can freely choose clamping and separating position.

5. Separator  clamping  power can freely adjust,Automatic stop and add pressure when reach to setup clamping power ,keep clamping ,Suitable of different strength levels blocks

6. Separator speed,distance and separating power can adjust based on use situation.

7. Separator lifting drived by hydraulic ,finished by transmission device and abutment beam,transmission device has imported encode,can accurately control the block lifting position;lifting speed and powder can adjusted based on request

8. Separator setup have automatic and manual operation ways,on hydraulic transmission oil recycle tube setup coarse, fine filter,Automatic alarm when local clogging occurs in the filter,automatic emergency treatment.

加气线掰板机

加气线掰板机


空中板板机

加气线掰板机

加气线掰板机
