Ball mill for Sand AAC Block machine
    • Ball mill for Sand AAC Block machine
    • Ball mill for Sand AAC Block machine
Product Details

Ball mill for Sand AAC Block machine

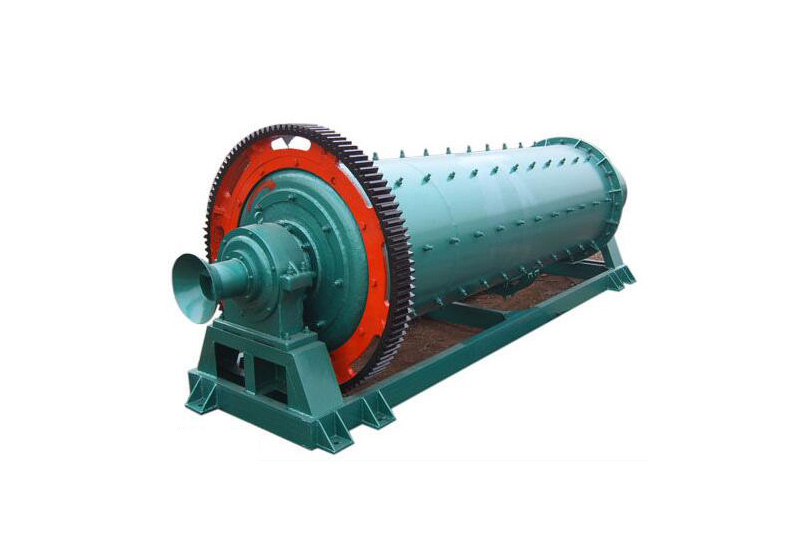

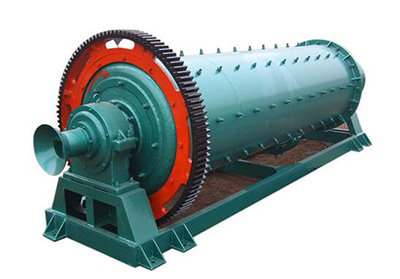

Product picture

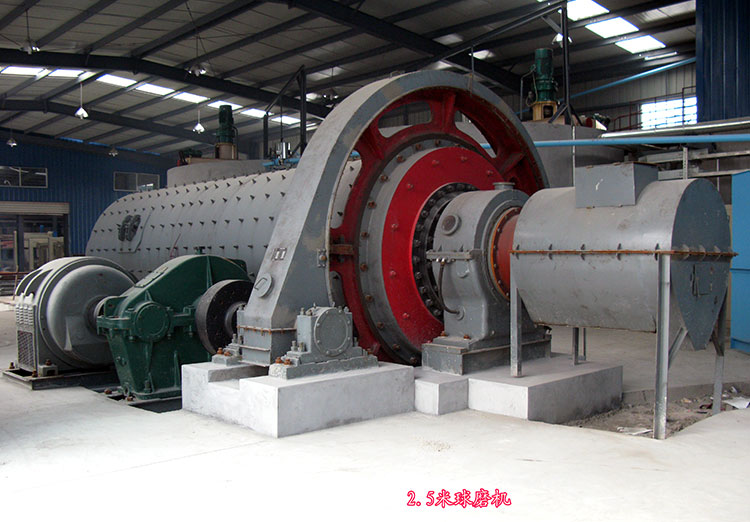

Physical map


Recommended application

Ball mill used for raw materials preparation section in AAC production line, have two types, dry-type ball mill,wet-type ball mill.

After block lime crushed by jaw crusher,Further grinding by a dry ball mill ,to reach to  fineness requests based on process technology

Wet type ball mill used for milling sand, go by medium steel ball and steel forging,to reach to fineness requests based on process technology

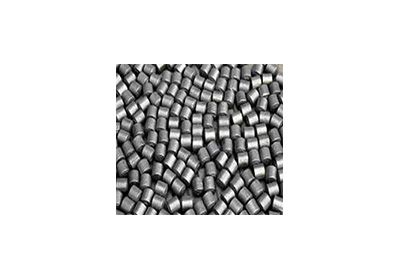

grinding body(steel ball and steel forging)


Equipment structure

Ball mill is composed of horizontal tank body,inlet /outlet heart-empty shaft ,heading grinding and etc.

Tank body is long cylinder,inside filled with grinding body,body made of steel plate,fixed by steel liner and body.grinding body is steel ball,put into the ball mill in a different diameter size and a certain proportion,grinding body can sue steel forging also.To Choose according to the granularity of grinding material ,Materials putted into ball mill body by inlet empty-shaft.When ball mill rotation,because of inertia and centrifugal force, friction acts on the grinding body,so that it is attached to the liner plate and taken away by the cylinder,when it arrive to certain height, be thrown down by its own gravity,The falling grinding body smashes in the ball mill body like a projectile.

*Working Principle:

The ball mill is horizontal cylindrical rotation device, driven by brim gearwheel. There are two chambers and grid of ball mill. Material goes into the first chamber through the feeding inlet. Inside the first chamber, there are stage liners and ripple liners as well as steel balls. The ball mill shell rotates so as to generate electricity, and this force brings ball to a certain height and then balls drop down by gravity, the impact is the grinding force to the material. After the primary grinding, materials go into the second chamber through segregate screen. In ball mill second chamber, there are flat liners and steel ball. After the secondary grinding, material is discharged from the discharging mouth


Technical Parameters

型号

进料口尺寸(mm)

最大进料粒度(mm)

排料口调整范围(mm)

处理能力(t/h)

偏心轴转速(r/min)

电动机功率(Kw)

总重量(t)

外形尺寸(mm)

PE-250×400

250×400

210

20-60

5-20

300

15

2.8

1300×1090×1270

PE-250×750

250×750

210

25-60

13-35

330

22

5.5

1380×1750×1540

PE-250×1000

250×1000

210

25-60

16-52

330

30

7

1560×1950×1390



Item

speed of bucket(r/min)

Weight of ball(t)

Size of feed opening(mm)

Size of outputting opening(mm)

Capacity(t/h)

Power(kw)

Weight(t)

Ф1500×5700

27

9

≤25

0.074-0.4

4~6

110

25

Ф1830×7000

23.9

19

≤25

0.074-0.4

8~12

210

35

Ф1830×7500

23.9

21

≤25

0.074-0.4

16~20

245

38

Ф2400×8000

20.4

40

≤25

0.074-0.4

36~41

475

66


Features:

★ Energy-saving.

★ Simple structure and split installation

★ Easy to installing and maintaining

★ Dry ball mills & wet ball mills for option according to different materials & discharging methods
