Jaw crusher for Sand AAC Block Plant
    • Jaw crusher for Sand AAC Block Plant
    • Jaw crusher for Sand AAC Block Plant
    • Jaw crusher for Sand AAC Block Plant
    • Jaw crusher for Sand AAC Block Plant
Product Details

Jaw crusher for Sand AAC Block Plant

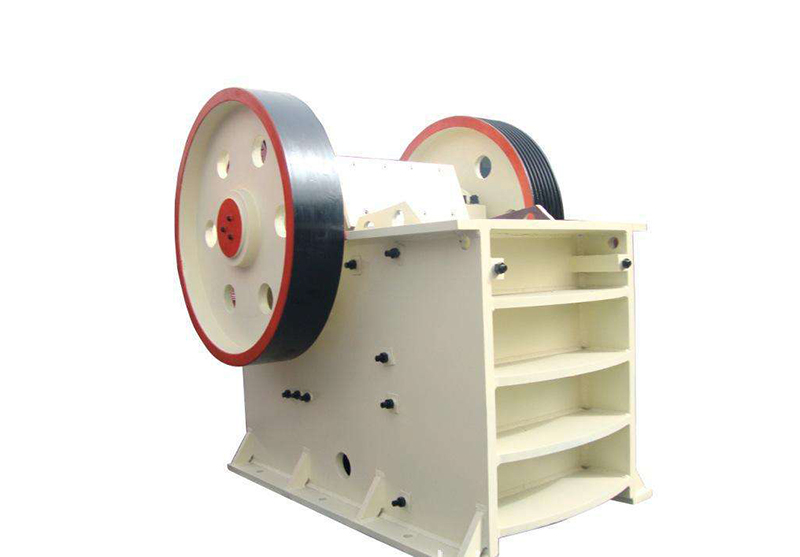

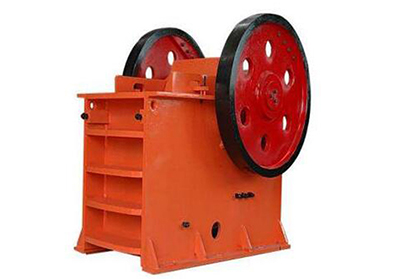

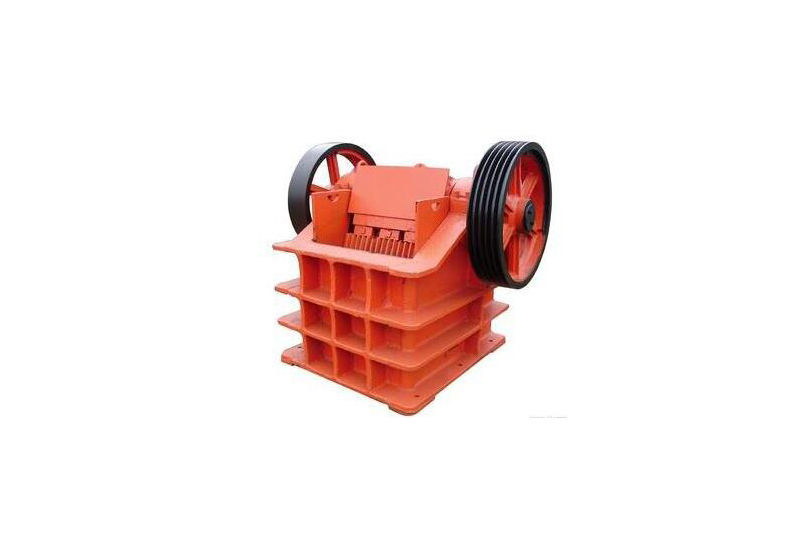

Jaw crusher Product picture

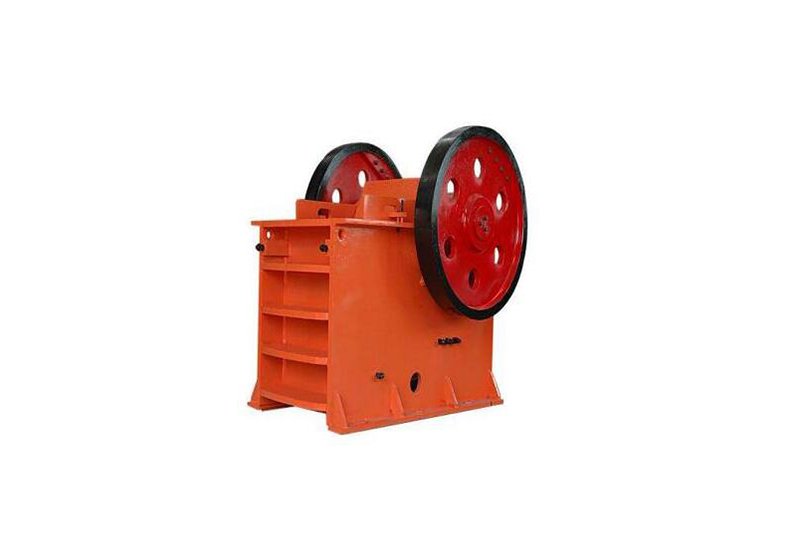

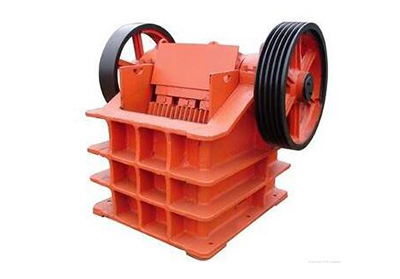

Jaw crusher Physical map

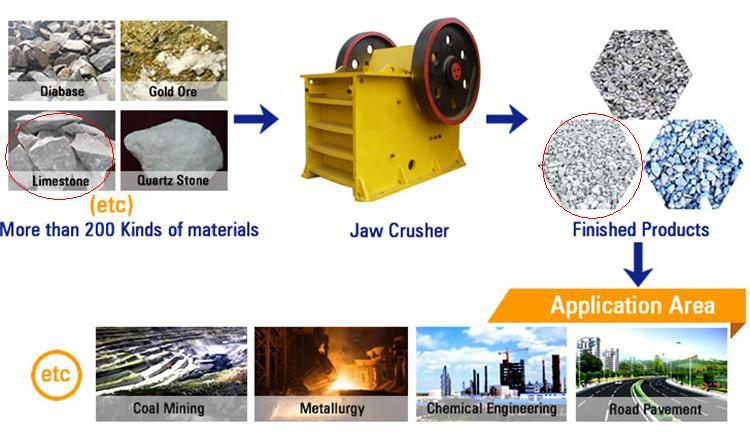

Jaw crusher Recommended application

Jaw crusher mainly used for lime crush in AAC production line

Block lime crushed by Jaw crusher,ball mill by dry-type ball mill,can make lime turn into powder.

In good quality lime country and area,The flyash grinding can be accomplished by using this machine so that reduce raw materials cost.


Jaw crusher Finished products


Equipment structure

Jaw cruhser mainly comprised with steel Frame body assembly,jaw plate assembly,jaw moving assembly.wheel assembly,adjusting device assembly,transmission tension assebly,foot installation assembly,material feeding hooper(selective matching) and protection cover(selective matching) etc.

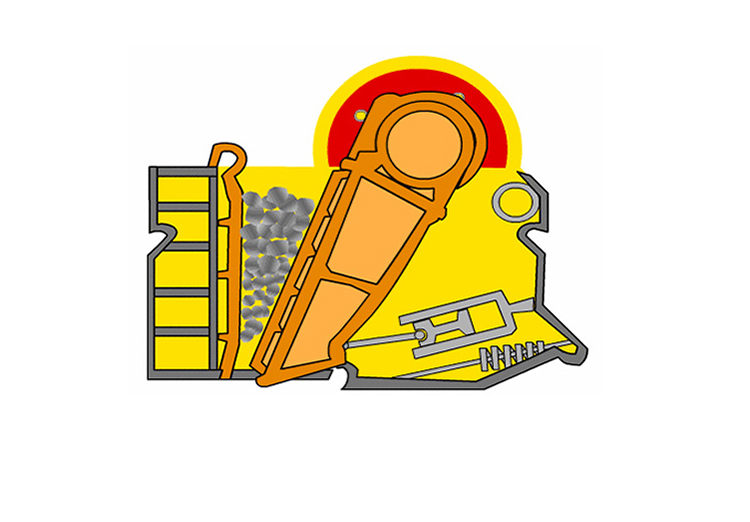

Working principle:

The motor drives the belt wheel, and makes movable jaw up and down by eccentric shaft, when the movable jaw down;

The angle between the fixed jaw and movable jaw gets smaller, and the materials can be crushed to reach the crushing target;

When the movable jaw rises, the angle between the fixed jaw and movable jaw becomes larger; the movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring; and then the crushed materials are discharged from the lower outlet of the crushing cavity.


Principle

Technical Parameters

型号

进料口尺寸(mm)

最大进料粒度(mm)

排料口调整范围(mm)

处理能力(t/h)

偏心轴转速(r/min)

电动机功率(Kw)

总重量(t)

外形尺寸(mm)

PE-250×400

250×400

210

20-60

5-20

300

15

2.8

1300×1090×1270

PE-250×750

250×750

210

25-60

13-35

330

22

5.5

1380×1750×1540

PE-250×1000

250×1000

210

25-60

16-52

330

30

7

1560×1950×1390


Features

★High reliability

★Top crushing performance

★Wedge setting adjustment

★Fast and simple maintenance

★Easy and less costly to install

★Excellent total crushing economy

★Excellent suitability
