AAC Plant Cutting Machine
    • AAC Plant Cutting Machine
    • AAC Plant Cutting Machine
    • AAC Plant Cutting Machine
Product Details

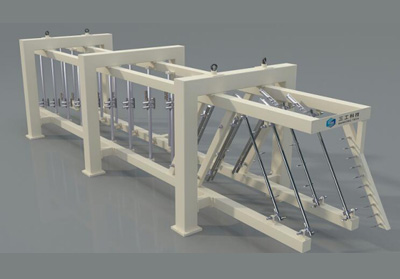

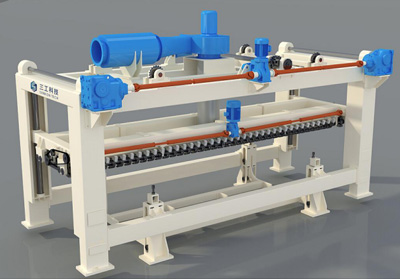

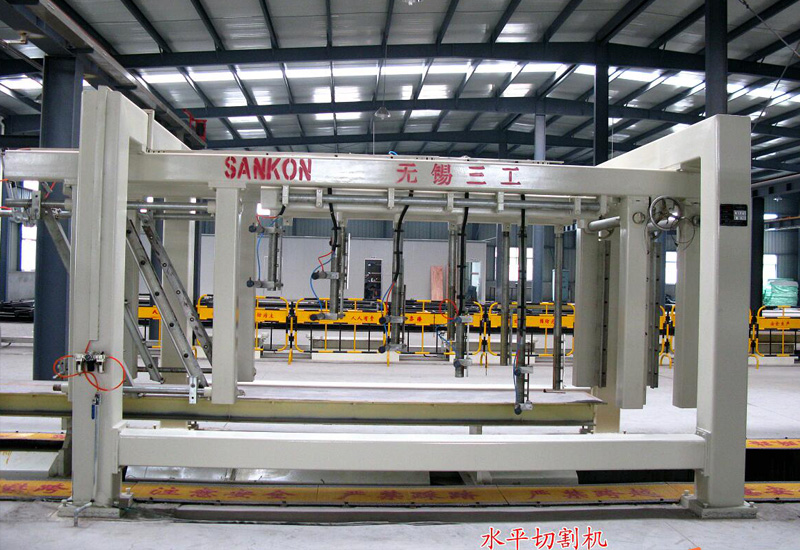

AAC Plant Cutting Machine Product picture

AAC Plant Cutting MachineAAC Plant Cutting Machine

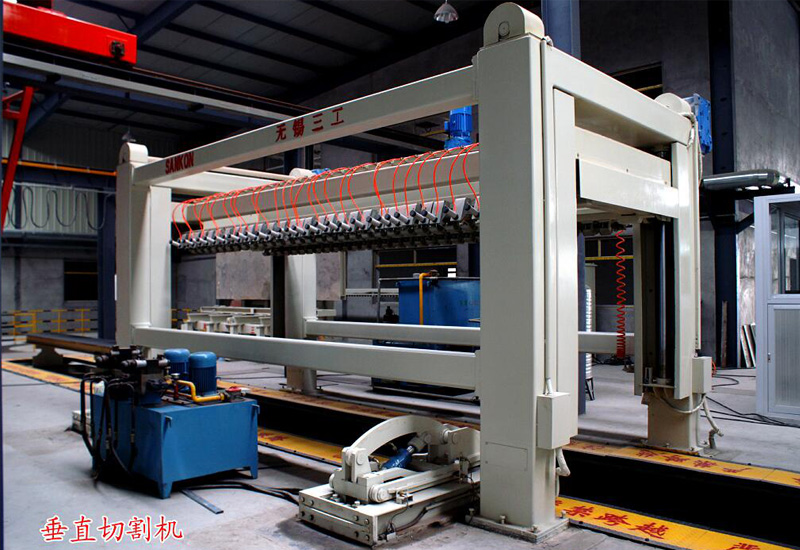

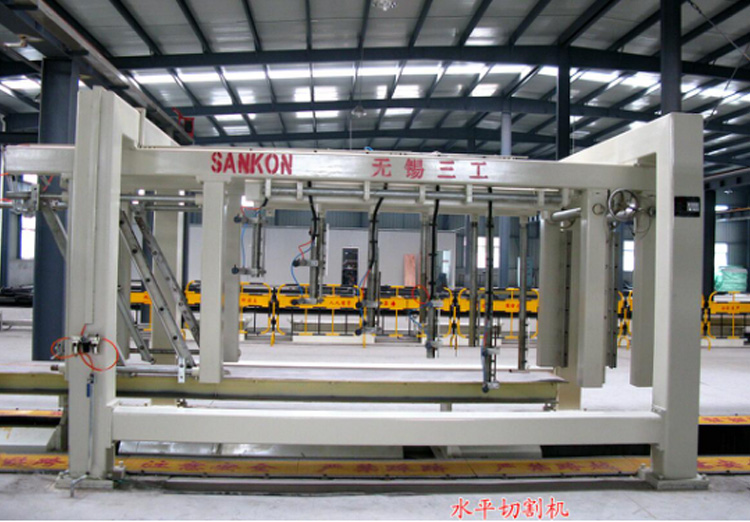

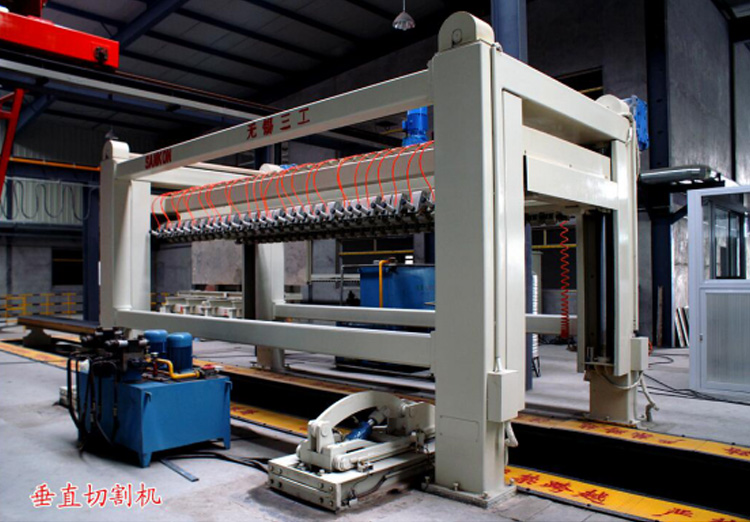

AAC Plant Cutting Machine Physical map

AAC Plant Cutting Machine

AAC Plant Cutting Machine

AAC Plant Cutting Machine

AAC Plant Cutting MachineAAC Plant Cutting Machine


AAC Plant Cutting Machine for aac production line main function


1.Aerated Autoclaved Concrete block machine line AAC Plant Cutting Machine Introduction:

The cutting machine is the most important part of Aerated Autoclaved Concrete block machine line.The production is more than 50,000m3. The cutting machine is the necessary hard-core,and is the indispensable part to improve the production. Our factory’s product--JL series cutter, this equipment can realize the cutting of the body one's goal instantly, six turn over cutting, because its advanced craft, there is no need of the second time hoisting, so can reduce the damage of th body because of multiple hoisting. Therefore, this product have been sold over the nation,and gain high praise from the ueser.With several years technological innovation,we have developed many kinds of models’concrete cutters.

2.AAC Plant Cutting Machine Working principle:

After turn the body on the over turning platform with the Base Plate,move towards the cutter until the small sliding table. After 90 degrees turn over, move the body from the small sliding table to the cutting position,cut the body’ four sides horizontally,then lengthwise cutting.After cutting ,move the body from the small sliding table to the over turning platform,turn the body on the counter-turnplate by 90 degrees with reversing direction.

3.AAC Plant Cutting Machine Main techniacl parameters

No

Title

Unit

Index

remark

1

Production capacity

Ten thousand m3/year

10-30

Annual output

2

Body sizes

M

6*1.2*0.6

Net

3

Cutting modulus

mm

5/10

vertical cutting /horizontal cutting

4

Cutting precision

mm

±3±1.5±1.5

Length、width、height

5

production cycle

Min/mould

6


6

The weight of the host cutter

T

18

vertical cutting /horizontal cutting

7

installed capacity of the host cutter

Kw

12.9

Including the hydraulic station
