Slag pump for AAC Concrete Machine
    • Slag pump for AAC Concrete Machine
    • Slag pump for AAC Concrete Machine
Product Details

Slag pump for AAC Concrete Machine

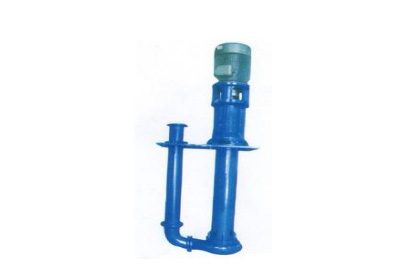

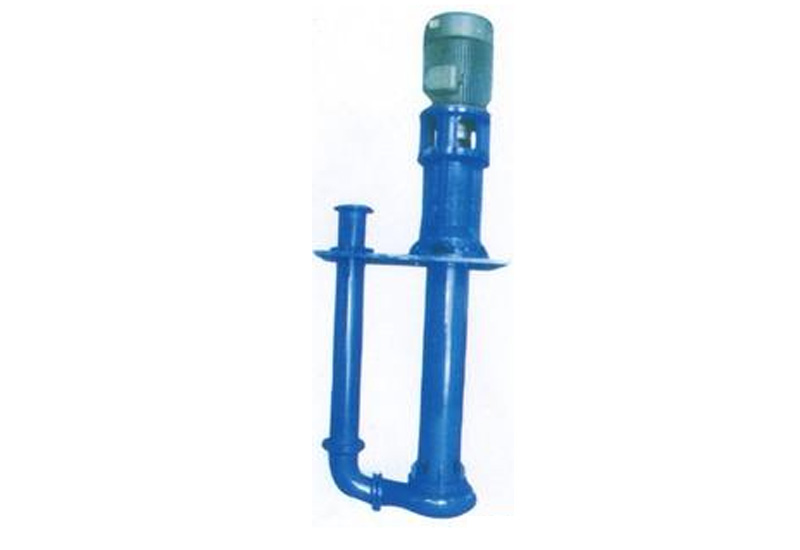

Product picture

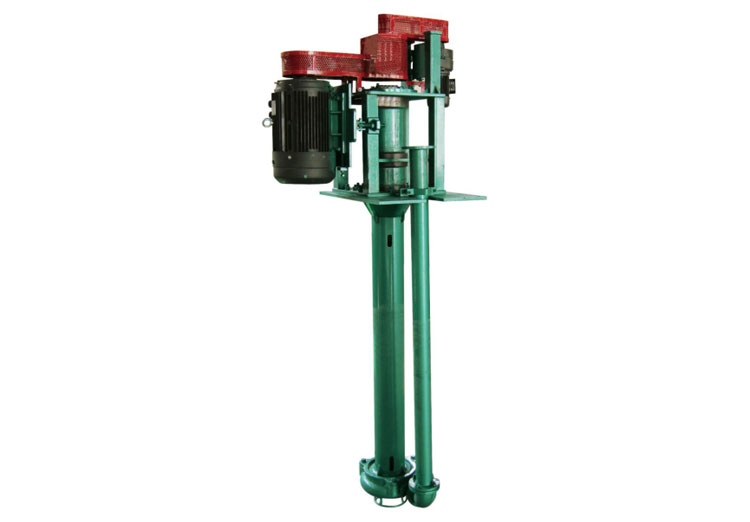

Physical map


Recommed apllication

Slag pump should match use with mixer,Extracted slurry from ferry pool ,waste slurry pool by slag pump to big slurry tank,go on general material preparation


Definition

DYS high-efficient wear-resisting centrifugal single-case mortar pump is a kind of single level,single suction,axial suction cantilever horizontal cenrtifugal pump.


Structure

DYS single case mortar pump consists of pump case,impeller ,back cover,bearing body assembly,bracket and etc.the pump is a single level,single suction,axial suction cantilever structure ,which make the site dismounting and installation,maintenance and adjustment very easy and convenient,there are two locknuts on the pump spindle,so the replacement of spindle will easy and fast.the inlet of the pump is on the level.seen from the direction of the motor,the pump sealing ways is adopted at the same time:packing shaft seal and auxiliary impeller shaft seal pour in shaft sea water to give play to the sealing effect under different filling height.


Technical parameters:

No

Type

Capacity

Distance(m)

Rotary speed(r/min)

Efficiency(%)

Desityγ(g/cm³)

Motor

m³/h

L/S

Type

PowerKW

1

DYS80-80

100

27.8

16

1460

53

1.7

Y180M-4

18.5



Advantages

Long life of quick-wear part

★large size of overcurrent

★convenient maintenance

★ low operating cost

★high reliability.
