Scale for AAC block making machine
    • Scale for AAC block making machine
    • Scale for AAC block making machine
    • Scale for AAC block making machine
Product Details

Scale for AAC block making machine

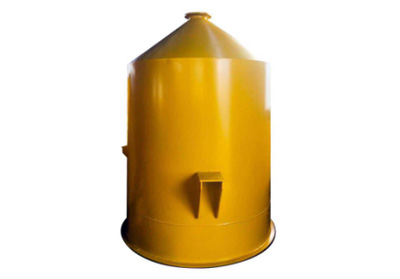

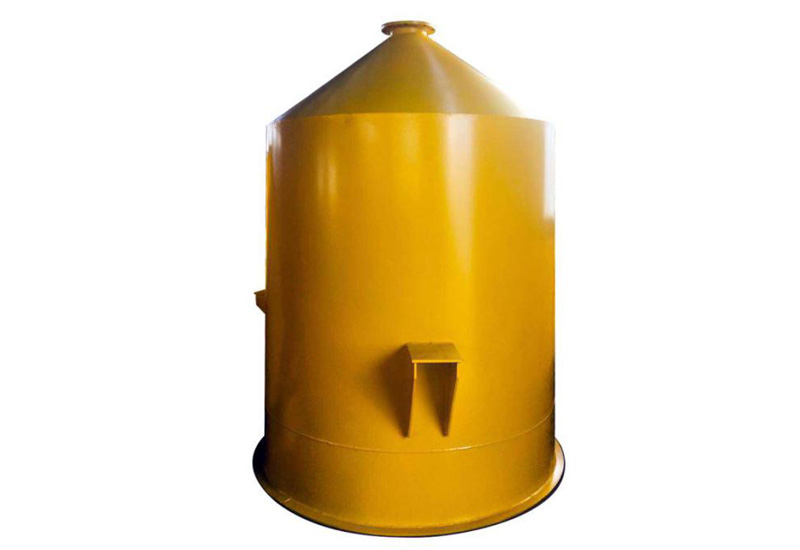

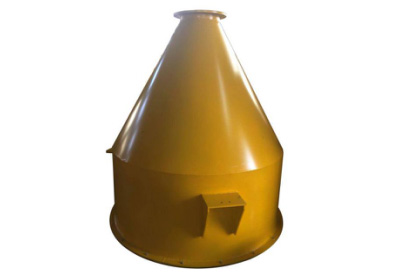

Product picture

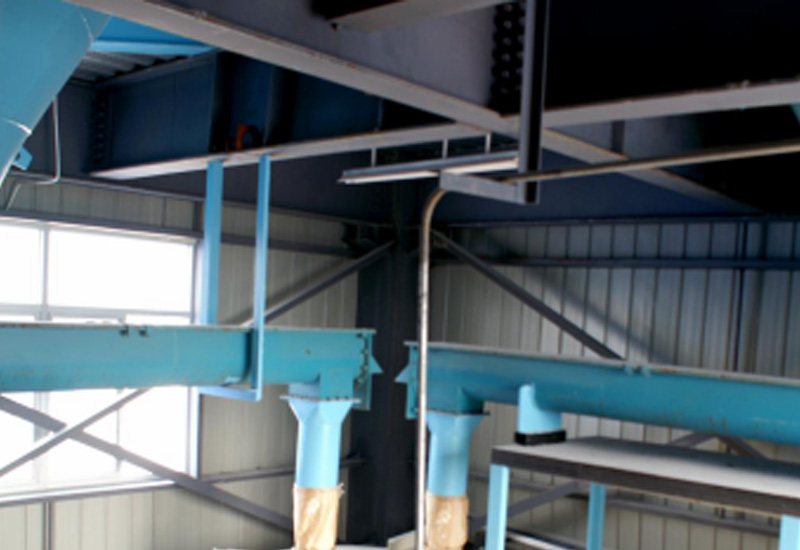

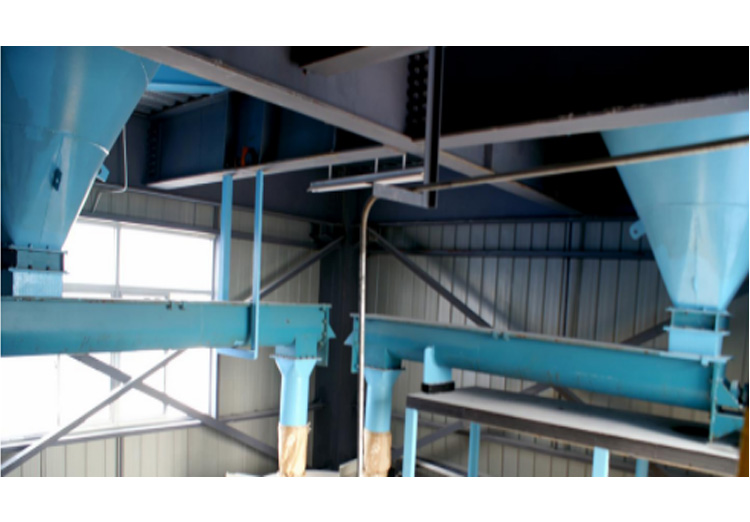

Physical map

Definition

Scale equipments are consist of certain volume tank,scale components(sensor),data processing display,

f    material discharging control valve and structure,scale accuracy 0.5-1.0%

Powder scale used for power type materials : lime.cement ,Mainly include tank,sensor ,display and valve etc.

f    Slurry scale used for flyash/sand and water mixture slurry scale.Mainly include tank,sensor ,display and valve etc.


Principle

When powder/slurry fallen down into scale,The weight of powder / slurry will be transmitted to weighing display by electronic sensor(output signal connect with PLC to realize automatic control),will know the powder/slurry weight,discharging controlled by pneumatic butterfly.


Technical Parameters

Powder scale

No

Volume

Size

Sensor

Capacity

1

1.49m³

φ1.4X1.55

Toledo 3PCX1000KG

50000-150000m3 AAC plant

2

1.88m³

φ1.4X1.8

Toledo 3PCX1000KG

150000m3-200000m3 AAC plant

3

2.2m³

φ1.5X1.85

Toledo 3PCX1000KG

200000m3-300000m3AAC plant

Powder scale

No

Volume

Size

Sensor

Capacity

1

2.54m³

φ1.4X1.9

Toledo 3PCX2000KG

50000-150000m3 AAC plant

2

3.05m³

φ1.5X2

Toledo 3PCX2000KG

150000m3-200000m3 AAC plant

3

2.88mm³

φ1.7X2.05

Toledo 3PCX2000KG

200000m3-300000m3AAC plant

Advantages

Accurate scale

Easy installation and maintance,less quick-wear part

Sensor uses italy famous brand.Quality guaranteed
